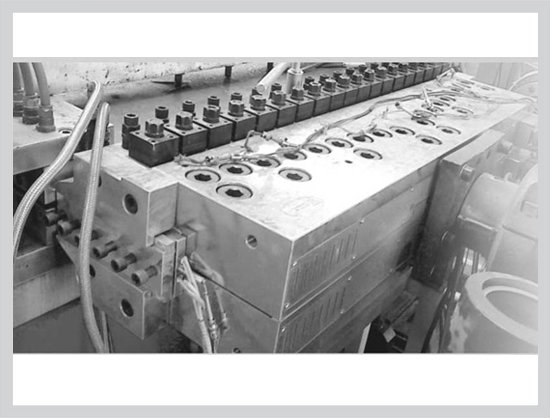

MOULDS for PVC/PE WPC Profiles from KS MOLD, Hubei, China.

Huangshi Kunsheng Industry & Trade Co.,Ltd (KS MOLD) was established in 2015 specially for overseas market and factory was established in 2005 for local market, initially. Company claims to be the biggest PVC profiles mould factory in Huangshi.

At KS MOLD Quality comes first. We aim to make the BEST moulds with life-time warranty. They claim their expertise for PVC profiles/PVC pipe/ Cable duct/ WPC / SPC/ Big board extrusion mould.

More than 50 worker and 10 senior technicians with 25 years’ working experience on mould industry serve KS Mold with a focus on R&D for material and design. Company’s independent mould designs have got more than 20 national patents. They supply mould to many Chinese major players. They have overseas markets are already extended to Europe, South Asia, Middle East.

KS MOLD makes

– PVC/UPVC window and door profiles mould
– PVC trunking cable duct mould
– WPC door panel mould
– PE WPC decking flooring mould
– SPC marble decoration mould
– WPC hollow/solid door frame mould
– Big Board/panel mould

For more details Ms Daisy can be contacted on Mobile/Whatsapp: 0086-18186002121. www.ksmold.com.cn.

Published by WPCNEWS.in, December, 2018.

Posted on

WPC + LVL Door frame lines from HEGU, China.

Being a professional manufacturer of WPC machines from China, HEGU from Qingdao is launching low cost and high quality WPC+LVL (Laminated Veneer Lumber) door frames by Co-extrusion technology. It is claimed to be a more stable product than solid WPC Door frames by HEGU. A few characteristics of Solid WPC Door frames like heavy weight and higher cost can be controlled with this WPC LVL technology.

As informed by company, the inner core of the profile can be LVL wooden, MDF profile, Aluminum Profile or a steel post and the outer layer can be WPC or uPVC with 4-5mm thickness, as shown in the schematic diagram here.

Solid WPC door frames during the extrusion process foams from inside, which becomes difficult to control sometimes. In case of WPC+LVL door frame the inner core size is fixed and it is fed continuously to the extrusion. It becomes easy for machine operators to control the product quality and overall dimension. Also the 4-5mm outer WPC layer becomes easy to be controlled by the die and calibrators. So the production defective rate remains very low.

For the Solid WPC door frame cooling is very important and difficult as well from inside. Even if you increase the length of a calibrator and water tank you have to maintain the production speed at a limit of 0.3-0.5 mtr/min because of the higher thickness of the profile and higher temperature inside the product. If temperature is not controlled effectively, chances of product deformation remains after production.

For the WPC+LVL door frame, the inner is LVL core which remains at normal temperature and shall only need to be heated at the surface before feeding to the extrusion line. WPC layer is of only 4-5mm thickness, so the complete product can be easily cooled down by the calibrators and the water tank. In this case production speed also can be maintained at 0.5-0.8m/min, without product deformation.

Solid WPC Door frame is purely a Polymer foam with wood content, thus product of low density can face problem of screw holding. For the WPC+LVL door frame, the inner is high density Laminated Veneer Lumber which has advantage of high strength, high toughness, and resistant of fatigue failure caused by periodic stress and thus high nail/screw holding strength.

For more details Ms Rosy Qin can be contacted on rosy@wpcmachinery.com or Mobile/Whatsapp/ wechat: 0086-15965573925.

Posted on

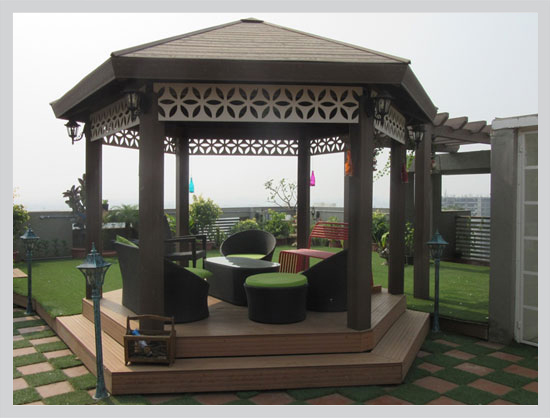

WPC GAZEBO

Gazebos have been fixtures in gardens for centuries, originally called summerhouses, screen houses, kiosks, pavilions, pergolas, arbors, grottos, or pagodas, the existence of gazebos has been traced to the earliest gardens.

Gazebos were common in Egyptian gardens 5,000 years ago and members of royalty were the first to have them. The structures were also popular in ancient Rome and Pompeii.

China’s gazebos were also quite elaborate, while those in Japan, often called teahouses, were used in conjunction with the revered Tea Ceremonies, and were the places to rest, get in touch with one’s spiritual side, and absorb the beauty of the garden. During the Renaissance, gazebos became popular in the gardens of monasteries, as shrines and places of meditation. During the late 1700’s, England and other parts of Europe got caught up in a craze for Chinese-style summerhouses, which began popping up in gardens everywhere.

All above conventional gazebos were being made especially with natural wood that needs periodical maintenance. Construction wise, A WPC Gazebo is developed with Pillars, Rafters, Roof covering profiles, Deck floors, Fencing, Designer Grills, Lamp posts and rest benches. It is a waterproof structure and can be made with different colours and rustic finishes.

We take turnkey projects for Gazebo installations and we fix it with captive components and fixtures designed by us.

Posted on

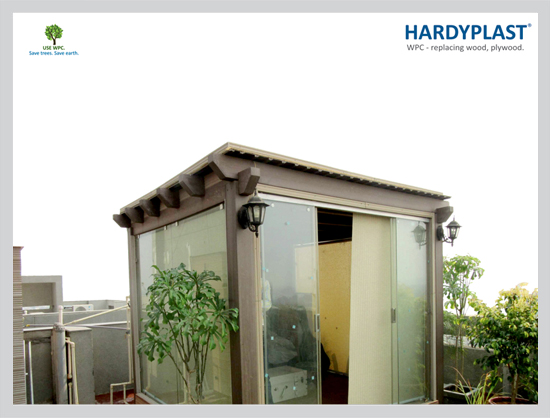

WPC Glass House

WPC GLASS HOUSE – Sit – Relax – Enjoy ‘Monsoon’ on River Side

WPC exterior grade products are direct replacement of natural wood. Made with polyethylene or polypropylene resins in composition with wood powder – creates high density wood alike profiles for different applications. As shown in the image HARDYPLAST recently supplied a project with all WPC products including WPC Pergolas, WPC Gazebo, WPC Deck floors, WPC wall cladding, WPC fencing walls, WPC ceiling and artificial garden all around.

A WPC glass house was installed with a total combination of WPC product varieties. Entire installation was made on 13th floor terrace of Iscon River side on Sabarmati Riverfront, Ahmedabad.

Designed the Glass house in such a way that it’s 3 sides are installed with hardened glass to give a view open to sky. One can see a long river stretch and river front sitting inside over a sofa. Inside ceiling is completely built up in a traditional aesthetic, where WPC wall cladding is mounted in a reverse manner giving a village home look.

Back wall is mounted with WPC fencing wall on MS structure and it is fixed with an air conditioner to keep cool the interior. Ceiling is mounted with decorative lanterns to give utility an exotic look. Indian seatings are placed inside for a leisure sitting to enjoy the river view. Entire structure is designed and built up specially for Monsoon season.

Site: Nirvana, Iscon Riverside, Sabarmati Riverfront, Ahmedabad.

Posted on

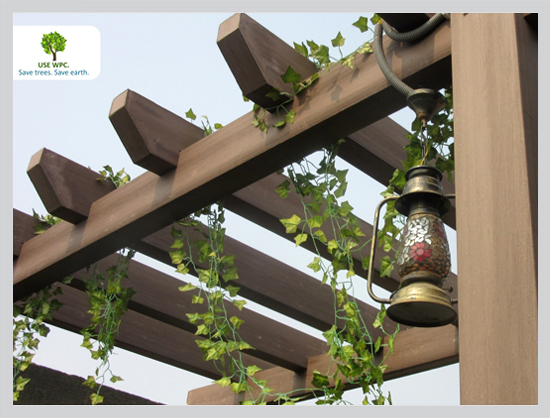

WPC PERGOLA

Pergolas are popularly known across the world for its unique identity with luxurious landscaping. It involves Pillars and Rafters (as beams) as major components. Pergolas with beautiful installations added with seating, green hanging planters and flowers creates real views of nature.

For villas, gardens, colony plots, restaurants, tea posts, road side refreshment areas Pergolas are becoming favorite because of its woody look. Made with wood and polymer with different surfaces like ‘sanded’ or ‘brushed’ or ’embossed’ pergolas are perfect replacement of conventional wooden structures. It is available in customized wood alike colours.

Standard size format comes in 10 ft x 10 ft, with or without benches and with or without WPC Flooring. This format can be multiplied with more such units for longer installations. Pergolas can be designed as glass houses also.

Posted on

WPC CENTRE

It is an Epi-centre of the WPC revolution in India. Started way back in 2013 at Ahmedabad in the early phase of WPC Industry, WPC CENTRE has been an application centre, demo centre and education centre for Wood polymer composite technologies and products. It was established for a noble cause of spreading awareness of WPC material within India and globally, to save trees & earth. Continue reading “WPC CENTRE”

Posted on

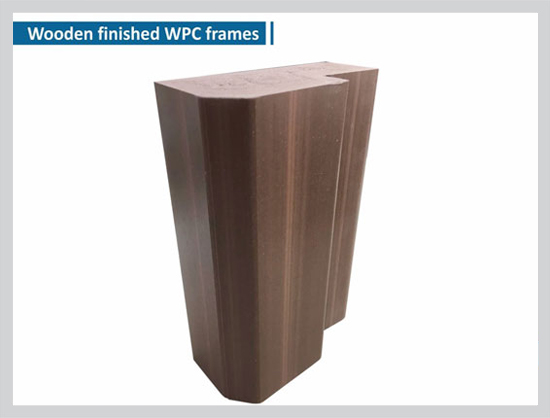

Premium WPC Door frames

A true product with less calcium contents

Door frame – popularly known as ‘Chaukat’ is an important product for the construction industry. Doors cannot be hung without it and it is becoming its place more stronger with its latest technology version made of ‘Solid Wood polymer composite’. To give an absolute hanging strength to the Door and protect it from termite attack is the main application of a Door frame. Continue reading “Premium WPC Door frames”

Posted on

Championing the green cause – A straight talk with Hardik Panchal

Mr. Hardik Panchal, CEO, Hardy Smith, Ahmedabad

1. Tell us about yourself.
Mr. Hardik Panchal is the CEO and promoter of Hardy Smith. Hardy Smith is a turnkey project supplier organisation into Wood plastic composite sector, providing Plant & Machinery, Formulation techniques and marketing support to the WPC sector in India and other countries. Continue reading “Championing the green cause – A straight talk with Hardik Panchal”
